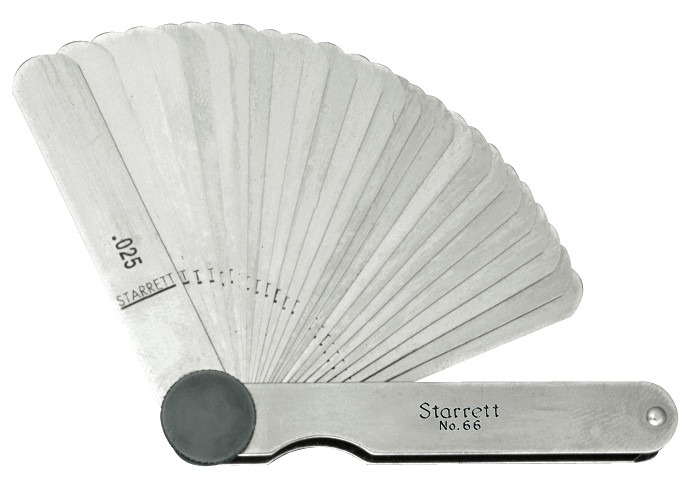

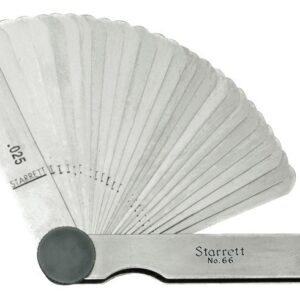

66 Thickness Gauge

These gauges are used in automotive, aviation, diesel and farm equipment manufacture and service and also in jig, fixture, gauge and experimental work. Especially useful in adjusting tappets, spark plugs, distributor points, checking bearing clearances and gear play, fitting pistons, rings and pins and gauging narrow slots. Made in a wide range of types and sizes, each having from 6 up to 26 leaves ranging in thickness’, straight or tapered.

• Leaves made of finest tempered-steel, carefully finished to correct thickness, individually tested and marked with thickness
• Locking device on most gauges permits securely locking one or more leaves in position
• Leaves easily removed or replaced
• Rugged, substantial steel case protects leaves
• All include locking device

• Item Number: BM597
• Global Item Number: 66
• No. of Leaves: 26
• Size Leaves: 1/2 x 3-1/32”
• (Range) Leaf Thickness:
  .0015, .002, .0025, .003, .004, .005, .006, .007,
  .008, .009, .010, .011, .012, .013, .014, .015, .016,
  .017, .018, .019, .020, .021, .022, .023, .024, .025
• Status*: MTS
• Country of Origin: China

*MTO Made to order – Products subject to longer lead times when stock is not available.
MTO lead times: China: 90 days / USA: 120 days.
*MTS Made to stock (regular availability).
