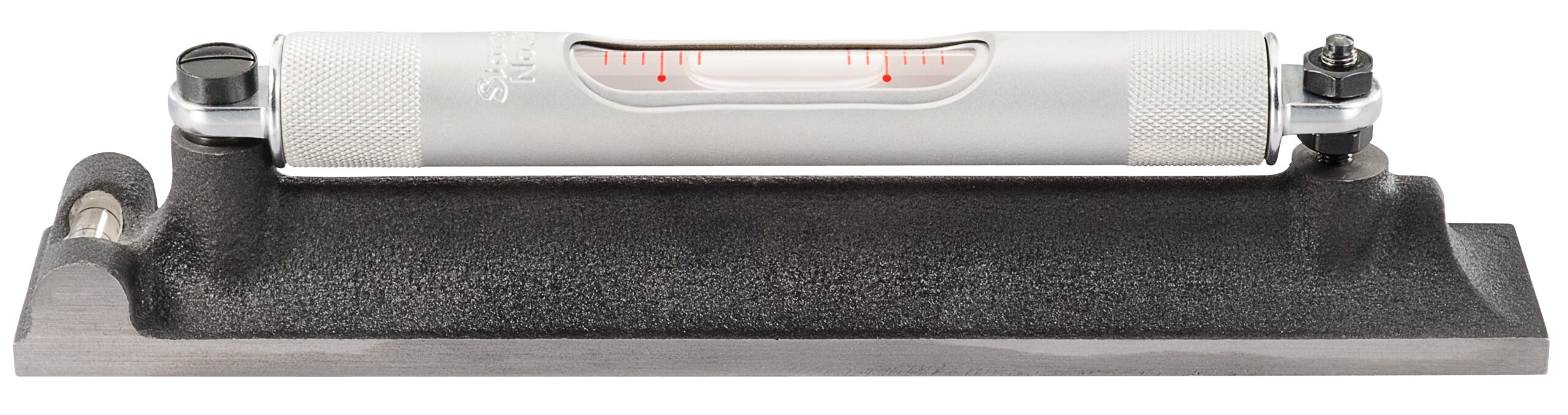

98AZ-8 98 8in Machinists’ Level with Ground and Graduated Vial in Aluminium Case

These levels have ground and graduated main vials. All sizes have a cross-test vial except the 100mm (4”) model.

The 300mm (12”) model also has a plumb vial, and the 450mm (18”) size has a double plumb vial. These vials are adjustable to a positive setting and are housed in a satin chrome-finished brass tube with a friction-fit closing cover to prevent breakage.

The base of the levels features an involute groove running the length of the base, which provides a reliable seat for round work such as pipes or shafting. With the cross-test vial, it is possible to simultaneously level in both directions. This prevents inaccuracies in the main vial reading caused by canting the level sidewise on round work.

The 150-450mm (6-18”) main level vials have graduations that are approximately 80-90 seconds or 0.42mm per metre (.005″ per foot). Depending on the base length, there are five, six, or seven lines on each side of the bubble.

• These levels have ground and graduated main vials
• The base of the levels features an involute groove running the length of the base, which provides a reliable seat for round work
• These vials are adjustable to a positive setting and are housed in a satin-finished brass tube with a friction-fit closing cover to prevent breakage
• *NEW* Comes in Aluminium Case

• Type: Machinists’ Level
• Length: 200mm (8”)
• Vial Housing: Satin-finished brass tube
• Status *MTO

*MTO Made to order – Products subject to longer lead times when stock is not available.
MTO lead times: China: 90 days / USA: 120 days.
*MTS Made to stock (regular availability).
