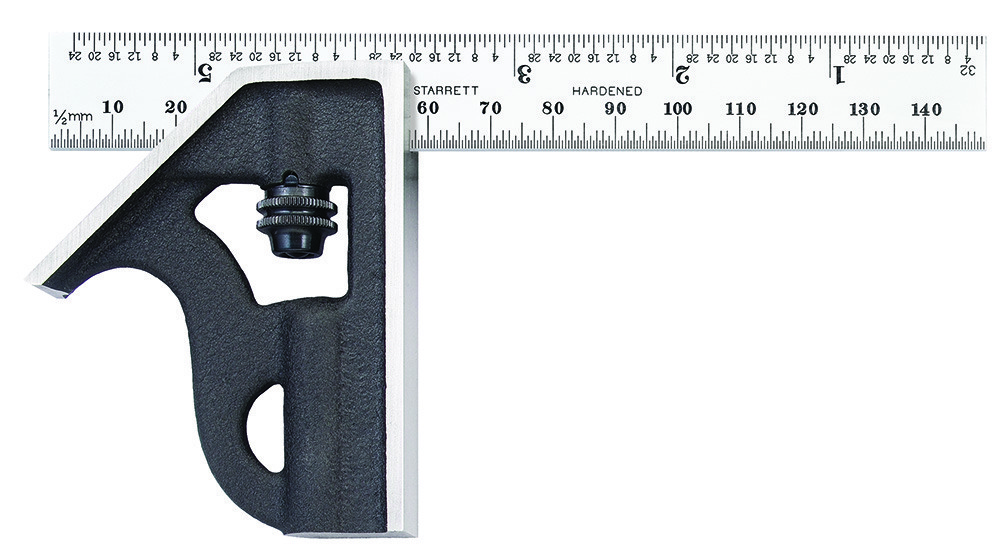

10MEH-150 10 Student Combination Square in Metric/Imperial
Currently out of stock - call Customer Services for more information.
- Product Details ▼
The Starrett Student Combination Square was designed to train and develop apprentices to lay out and check their work more efficiently. The combination square is far superior to clumsy, old-style solid workshop-grade squares that are still being used in some vocational schools and apprenticeship programs around the world.
- Features ▼
- Rugged, cast iron square head will outlast cheap plastic and die-cast imitations
- Accurate, hardened and tempered square blade offered in inch, millimetre, and inch and millimetre combined
- Reversible lock bolt allows the blade to be turned over or end-for-end so that all four graduated edges may be used
- The combination square, as its name indicates, handles many jobs, saving the apprentice from buying more individual tools. This combination square can be used as a try square, 45º mitre, a depth gauge, a height gauge, a layout tool, and as a rule
- Optional centre head is available to increase the versatility of this universal measuring tool
- Specification ▼
- Type: Combination Square
- Blade Length: 150mm (5.3/4”)
- Blade Finish: Regular
- Graduation Type: 36
- Graduations: 1/2mm and 32nds one side; mm and 64th reverse side
- Head Finish: Black wrinkle
- Head Material: Cast iron
- Head Type: Square
- Number of Pieces: Two
- Packaging: Starrett red cardboard box
